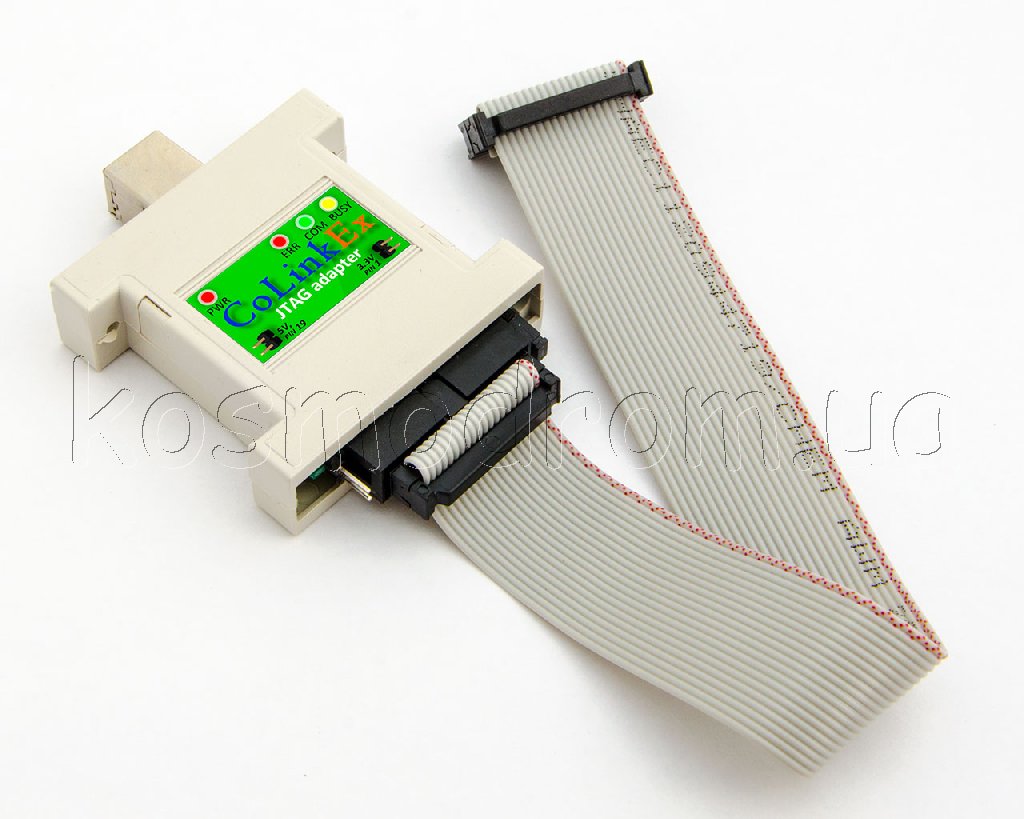

CoLinkEx – ARM JTAG/SWD программатор для Cortex-M микроконтроллеров с поддержкой в COIDE и Keil RealView MDK
CoLinkEx – это программатор/отладчик с поддержкой JTAG и SW интерфейсов для ARM Cortex-M микроконтроллеров. Он поддерживается в Coocox IDE и Keil RealView MDK. Также программатор имеет удобную дополнительную функцию – возможность запитывать программируемое устройство через JTAG разъем напряжением 3,3В или 5В


Особенности

- Частично открытый проект, не требует лицензий для работы
- Поддержка JTAG и SW интерфейсов в микроконтроллерах на ядре Cortex-M
- Поддерживается в Coocox IDE (COIDE), и в Keil RealView MDK с помощью плагина
- Разъем USB-B обеспечивает механическую прочность и надежность подключения программатора к USB интерфейсу
- Поддержка обновления прошивки программатора через USB интерфейс
- Стандартный 20-контактный разъем JTAG
- Возможность запитать программируемое устройство напряжением 3,3В или 5В от программатора через JTAG разъем

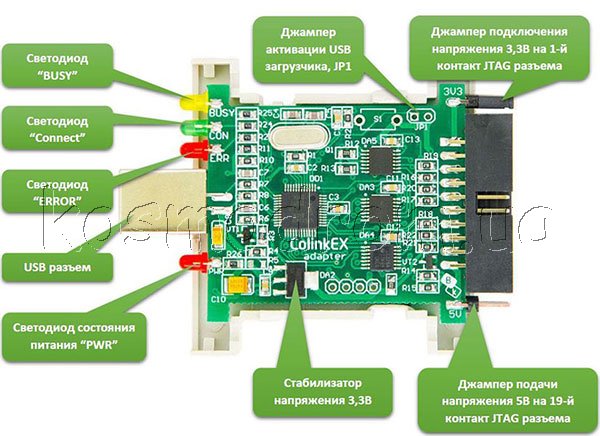

- 4 светодиода состояния работы программатора
- Компактный размер 55х55х18мм

Перечень поддерживаемых микроконтроллеров в режиме JTAG

ATMEL:
AT91SAM3U4E AT91SAM3U4C
AT91SAM3U2E AT91SAM3U2C
AT91SAM3U1E AT91SAM3U1C

NXP:
LPC1751 LPC1752 LPC1754 LPC1756 LPC1758 LPC1759
LPC1763 LPC1764 LPC1765 LPC1766 LPC1767 LPC1768 LPC1769

ST:
STM32F100C4, STM32F100C6, STM32F100C8, STM32F100CB,
STM32F100R4, STM32F100R6, STM32F100R8, STM32F100RB, STM32F100RC, STM32F100RD, STM32F100RE,
STM32F100V8, STM32F100VB, STM32F100VC, STM32F100VD, STM32F100VE,
STM32F100ZC, STM32F100ZD, STM32F100ZE,
STM32F101C4, STM32F101C6, STM32F101C8, STM32F101CB,
STM32F101R4, STM32F101R6, STM32F101R8, STM32F101RB, STM32F101RC, STM32F101RD, STM32F101RE, STM32F101RF,
STM32F101T4, STM32F101T6, STM32F101T8, STM32F101TB,
STM32F101V8, STM32F101VB, STM32F101VC, STM32F101VD, STM32F101VE, STM32F101VF, STM32F101VG,
STM32F101ZC, STM32F101ZD, STM32F101ZE,
STM32F102C4, STM32F102C6, STM32F102C8, STM32F102CB,
STM32F102R4, STM32F102R6, STM32F102R8, STM32F102RB,
STM32F103C4, STM32F103C6, STM32F103C8, STM32F103CB,
STM32F103R4, STM32F103R6, STM32F103R8, STM32F103RB, STM32F103RC, STM32F103RD, STM32F103RE, STM32F103RF, STM32F103RG,
STM32F103T4, STM32F103T6, STM32F103T8, STM32F103TB,
STM32F103V8, STM32F103VB, STM32F103VC, STM32F103VD, STM32F103VE, STM32F103VF, STM32F103VG,
STM32F103ZC, STM32F103ZD, STM32F103ZE, STM32F103ZF, STM32F103ZG,
STM32F105R8, STM32F105RB, STM32F105RC, STM32F105V8, STM32F105VB, STM32F105VC,
STM32F107RB, STM32F107RC, STM32F107VB, STM32F107VC
STM32F401CB, STM32F401CC, STM32F401RB, STM32F401RC, STM32F401VB, STM32F401VC
STM32F405OE, STM32F405OG, STM32F405RG, STM32F405VG, STM32F405ZG
STM32F407IE, STM32F407IG, STM32F407VE, STM32F407VG, STM32F407ZE, STM32F407ZG,
STM32F415OG, STM32F415RG, STM32F415VG, STM32F415ZG
STM32F417IE, STM32F417IG, STM32F417VE, STM32F417VG, STM32F417ZE, STM32F417ZG
STM32L151C6, STM32L151C8, STM32L151CB, STM32L151R6, STM32L151R8, STM32L151RB, STM32L151V8, STM32L151VB
STM32L151CC, STM32L151QC, STM32L151RC, STM32L151UC, STM32L151VC, STM32L151ZC
STM32L151QD, STM32L151RD, STM32L151VD, STM32L151ZD
STM32L152C6, STM32L152C8, STM32L152CB, STM32L152R6, STM32L152R8, STM32L152RB, STM32L152V8, STM32L152VB
STM32L152CC, STM32L152QC, STM32L152RC, STM32L152VC, STM32L152ZC
STM32L152QD, STM32L152RD, STM32L152VD, STM32L152ZD
STM32F302CB, STM32F302CC, STM32F302RB, STM32F302RC, STM32F302VB, STM32F302VC
STM32F303CB, STM32F303CC, STM32F303RB, STM32F303RC, STM32F303VB, STM32F303VC

TI:
LM3S102 LM3S316 LM3S601 LM3S617 LM3S811 LM3S818
LM3S1958 LM3S1968
LM3S2110 LM3S2276 LM3S2776 LM3S2793 LM3S2965 LM3S2B93
LM3S3748 LM3S3W26
LM3S5749 LM3S5B91
LM3S6432 LM3S6537 LM3S6610 LM3S6911 LM3S6918 LM3S6965
LM3S8962 LM3S8971
LM3S9792 LM3S9B90 LM3S9B92 LM3S9B96 LM3S9L97

Toshiba:
TMPM341FDXBG, TMPM341FYXBG, TMPM342FYXBG
TMPM330FDFG, TMPM330FWFG, TMPM330FYFG, TMPM332FWUG, TMPM333FDFG, TMPM333FWFG, TMPM333FYFG
TMPM361F10FG, TMPM361FDFG, TMPM361FYFG, TMPM362F10FG, TMPM363F10FG, TMPM365FWXBG, TMPM365FYXBG, TMPM366FDFG,
TMPM366FDXBG, TMPM366FWFG, TMPM366FWXBG, TMPM366FYFG, TMPM366FYXBG, TMPM367FDFG, TMPM367FDXBG, TMPM367FWFG,
TMPM367FWXBG, TMPM367FYFG, TMPM367FYXBG, TMPM368FDFG, TMPM368FDXBG, TMPM368FWFG, TMPM368FWXBG, TMPM368FYFG,
TMPM368FYXBG, TMPM369FDFG, TMPM369FDXBG, TMPM369FYFG, TMPM369FYXBG

Перечень поддерживаемых микроконтроллеров в режиме SW

ATMEL:

AT91SAM3U4E AT91SAM3U4C
AT91SAM3U2E AT91SAM3U2C
AT91SAM3U1E AT91SAM3U1C

Energy Micro:
EFM32G200F16 EFM32G200F32 EFM32G200F64
EFM32G210F128
EFM32G230F128 EFM32G230F32 EFM32G230F64
EFM32G280F128 EFM32G280F32 EFM32G280F64
EFM32G290F128 EFM32G290F32 EFM32G290F64
EFM32G840F128 EFM32G840F64 EFM32G840F32
EFM32G880F128 EFM32G880F64 EFM32G880F32
EFM32G890F128 EFM32G890F64 EFM32G890F32

Freescale:
MKL04Z16VFK4, MKL04Z16VFM4, MKL04Z16VLC4, MKL04Z16VLF4, MKL04Z32VFK4, MKL04Z32VFM4, MKL04Z32VLC4, MKL04Z32VLF4, MKL04Z8VFK4, MKL04Z8VFM4, MKL04Z8VLC4,
MKL05Z16VFK4, MKL05Z16VFM4, MKL05Z16VLC4, MKL05Z16VLF4, MKL05Z32VFK4, MKL05Z32VFM4, MKL05Z32VLC4, MKL05Z32VLF4, MKL05Z8VFK4, MKL05Z8VFM4, MKL05Z8VLC4,
MKL14Z32VFM4, MKL14Z32VFT4, MKL14Z32VLH4, MKL14Z32VLK4, MKL14Z64VFM4, MKL14Z64VFT4, MKL14Z64VLH4, MKL14Z64VLK4,
MKL15Z128VFM4, MKL15Z128VFT4, MKL15Z128VLH4, MKL15Z128VLK4, MKL15Z32VFM4, MKL15Z32VFT4, MKL15Z32VLH4, MKL15Z32VLK4, MKL15Z64VFM4, MKL15Z64VFT4, MKL15Z64VLH4, MKL15Z64VLK4,
MKL24Z32VFM4, MKL24Z32VFT4, MKL24Z32VLH4, MKL24Z32VLK4, MKL24Z64VFM4, MKL24Z64VFT4, MKL24Z64VLH4, MKL24Z64VLK4,
MKL25Z128VFM4, MKL25Z128VFT4, MKL25Z128VLH4, MKL25Z128VLK4, MKL25Z32VFM4, MKL25Z32VFT4, MKL25Z32VLH4, MKL25Z32VLK4, MKL25Z64VFM4, MKL25Z64VFT4, MKL25Z64VLH4, MKL25Z64VLK4

Holtek:
HT32F1251, HT32F1251B, HT32F1252, HT32F1253
HT32F1755, HT32F1765, HT32F2755

NXP:
LPC1111x101 LPC1111x201 LPC1112x101 LPC1112x201
LPC1113x201 LPC1113x301 LPC1114x201 LPC1114x301
LPC11C14x301 LPC11C12x301
LPC1224x101 LPC1224x121 LPC1225x301 LPC1225x321 LPC1226x301 LPC1227x301
LPC1311 LPC1313 LPC1342 LPC1343
LPC1751 LPC1752 LPC1754 LPC1756 LPC1758 LPC1759
LPC1763 LPC1764 LPC1765 LPC1766 LPC1767 LPC1768 LPC1769

Nuvoton:
AU9110LF3AN
NUC100LC1BN, NUC100LD1BN, NUC100LD2BN, NUC100RC1BN, NUC100RD1BN, NUC100RD2BN
NUC100LD3AN, NUC100LE3AN, NUC100RD3AN, NUC100RE3AN, NUC100VD2AN, NUC100VD3AN, NUC100VE3AN
NUC120LC1BN, NUC120LD1BN, NUC120LD2BN, NUC120RC1BN, NUC120RD1BN, NUC120RD2BN
NUC120LD3AN, NUC120LE3AN, NUC120RD3AN, NUC120RE3AN, NUC120VD2AN, NUC120VD3AN, NUC120VE3AN
NUC100LC1DN, NUC100LD2DN, NUC100LE3DN, NUC100RC1DN, NUC100RD1DN, NUC100RD2DN, NUC100RE3DN, NUC100VE3DN
NUC120LC1DN, NUC120LD2DN, NUC120LE3DN, NUC120RC1DN, NUC120RD2DN, NUC120RE3DN, NUC120VE3DN
NUC122LC1AN, NUC122LD2AN, NUC122SC1AN, NUC122SD2AN, NUC122ZC1AN, NUC122ZD2AN
NUC123LC2AN1, NUC123LD4AN0, NUC123SC2AN1, NUC123SD4AN0, NUC123ZC2AN1, NUC123ZD4AN0
NUC130LC1CN, NUC130LD2CN, NUC130LE3CN, NUC130RC1CN, NUC130RD2CN, NUC130RE3CN, NUC130VE3CN
NUC140LC1CN, NUC140LD2CN, NUC140LE3CN, NUC140RC1CN, NUC140RD2CN, NUC140RE3CN, NUC140VE3CN
M0516LBN, M0516ZBN, M052LBN, M052ZBN, M054LBN, M054ZBN, M058LBN, M058ZBN
M052LDE, M052LDN, M052ZDE, M052ZDN, M054LDE, M054LDN, M054ZDE, M054ZDN, M058LDE, M058LDN, M058ZDE, M058ZDN, M058ZDE, M058ZDN, M0516LDE, M0516LDN, M0516ZDE, M0516ZDN
M058SZAN, M058SLAN, M058SSAN
MINI51LDE, MINI51ZDE, MINI52LDE, MINI52ZDE, MINI54LDE, MINI54ZDE, MINI51FDE, MINI52FDE, MINI54FDE, MINI51TDE, MINI52TDE, MINI54TDE
NANO100KC2BN, NANO100KD2BN, NANO100KD3BN, NANO100KE3BN, NANO100LC2BN, NANO100LD2BN, NANO100LD3BN, NANO100LE3BN, NANO100SC2BN, NANO100SD2BN, ANO100SD3BN, NANO100SE3BN
NANO110KC2BN, NANO110KD2BN, NANO110KD3BN, NANO110KE3BN, NANO110SC2BN, NANO110SD2BN, NANO110SD3BN, NANO110SE3BN
NANO120KC2BN, NANO120KD2BN, NANO120KD3BN, NANO120KE3BN, NANO120LC2BN, NANO120LD2BN, NANO120LD3BN, NANO120LE3BN, NANO120SC2BN, NANO120SD2BN, NANO120SD3BN, NANO120SE3BN
NANO130KC2BN, NANO130KD2BN, NANO130KD3BN, NANO130KE3BN, NANO130SC2BN, NANO130SD2BN, NANO130SD3BN, NANO130SE3BN
NUC200LC2AN, NUC200LD2AN, NUC200LE3AN, NUC200SC2AN, NUC200SD2AN, NUC200SE3AN, NUC200VE3AN
NUC220LC2AN, NUC220LD2AN, NUC220LE3AN, NUC220SC2AN, NUC220SD2AN, NUC220SE3AN, NUC220VE3AN

ST:
STM32F030R8T6, STM32F030C6T6, STM32F030C8T6, STM32F030F4P6, STM32F030K6T6
STM32F031C4, STM32F031C6, STM32F031F4, STM32F031F6, STM32F031G4, STM32F031G6, STM32F031K4, STM32F031K6
STM32F042C4, STM32F042F4, STM32F042G4, STM32F042K4, STM32F042T4, STM32F042C6, STM32F042F6, STM32F042G6, STM32F042K6, STM32F042T6
STM32F050C4, STM32F050C6, STM32F050F4, STM32F050F6, STM32F050G4, STM32F050G6, STM32F050K4, STM32F050K6
STM32F051C4, STM32F051C6, STM32F051C8, STM32F051K4, STM32F051K6, STM32F051K8, STM32F051R4, STM32F051R6, STM32F051R8,
STM32F071V8, STM32F071VB, STM32F071RB, STM32F071CB
STM32F072C8, STM32F072CB, STM32F072R8, STM32F072RB, STM32F072V8, STM32F072VB
STM32F100C4, STM32F100C6, STM32F100C8, STM32F100CB,
STM32F100R4, STM32F100R6, STM32F100R8, STM32F100RB, STM32F100RC, STM32F100RD, STM32F100RE,
STM32F100V8, STM32F100VB, STM32F100VC, STM32F100VD, STM32F100VE,
STM32F100ZC, STM32F100ZD, STM32F100ZE,
STM32F101C4, STM32F101C6, STM32F101C8, STM32F101CB,
STM32F101R4, STM32F101R6, STM32F101R8, STM32F101RB, STM32F101RC, STM32F101RD, STM32F101RE, STM32F101RF,
STM32F101T4, STM32F101T6, STM32F101T8, STM32F101TB,
STM32F101V8, STM32F101VB, STM32F101VC, STM32F101VD, STM32F101VE, STM32F101VF, STM32F101VG,
STM32F101ZC, STM32F101ZD, STM32F101ZE,
STM32F102C4, STM32F102C6, STM32F102C8, STM32F102CB,
STM32F102R4, STM32F102R6, STM32F102R8, STM32F102RB,
STM32F103C4, STM32F103C6, STM32F103C8, STM32F103CB,
STM32F103R4, STM32F103R6, STM32F103R8, STM32F103RB, STM32F103RC, STM32F103RD, STM32F103RE, STM32F103RF, STM32F103RG,
STM32F103T4, STM32F103T6, STM32F103T8, STM32F103TB,
STM32F103V8, STM32F103VB, STM32F103VC, STM32F103VD, STM32F103VE, STM32F103VF, STM32F103VG,
STM32F103ZC, STM32F103ZD, STM32F103ZE, STM32F103ZF, STM32F103ZG,
STM32F105R8, STM32F105RB, STM32F105RC, STM32F105V8, STM32F105VB, STM32F105VC,
STM32F107RB, STM32F107RC, STM32F107VB, STM32F107VC
STM32F401CB, STM32F401CC, STM32F401RB, STM32F401RC, STM32F401VB, STM32F401VC
STM32F405OE, STM32F405OG, STM32F405RG, STM32F405VG, STM32F405ZG
STM32F407IE, STM32F407IG, STM32F407VE, STM32F407VG, STM32F407ZE, STM32F407ZG,
STM32F415OG, STM32F415RG, STM32F415VG, STM32F415ZG
STM32F417IE, STM32F417IG, STM32F417VE, STM32F417VG, STM32F417ZE, STM32F417ZG
STM32L151C6, STM32L151C8, STM32L151CB, STM32L151R6, STM32L151R8, STM32L151RB, STM32L151V8, STM32L151VB
STM32L151CC, STM32L151QC, STM32L151RC, STM32L151UC, STM32L151VC, STM32L151ZC
STM32L151QD, STM32L151RD, STM32L151VD, STM32L151ZD
STM32L152C6, STM32L152C8, STM32L152CB, STM32L152R6, STM32L152R8, STM32L152RB, STM32L152V8, STM32L152VB
STM32L152CC, STM32L152QC, STM32L152RC, STM32L152VC, STM32L152ZC
STM32L152QD, STM32L152RD, STM32L152VD, STM32L152ZD
STM32F302CB, STM32F302CC, STM32F302RB, STM32F302RC, STM32F302VB, STM32F302VC
STM32F303CB, STM32F303CC, STM32F303RB, STM32F303RC, STM32F303VB, STM32F303VC

TI:
LM3S102 LM3S316 LM3S601 LM3S617 LM3S811 LM3S818
LM3S1958 LM3S1968
LM3S2110 LM3S2276 LM3S2776 LM3S2793 LM3S2965 LM3S2B93
LM3S3748 LM3S3W26
LM3S5749 LM3S5B91
LM3S6432 LM3S6537 LM3S6610 LM3S6911 LM3S6918 LM3S6965
LM3S8962 LM3S8971
LM3S9792 LM3S9B90 LM3S9B92 LM3S9B96 LM3S9L97

Toshiba:
TMPM061FWFG
TMPM341FDXBG, TMPM341FYXBG, TMPM342FYXBG
TMPM330FDFG, TMPM330FWFG, TMPM330FYFG, TMPM332FWUG, TMPM333FDFG, TMPM333FWFG, TMPM333FYFG
TMPM361F10FG, TMPM361FDFG, TMPM361FYFG, TMPM362F10FG, TMPM363F10FG, TMPM364F10FG, TMPM365FWXBG, TMPM365FYXBG, TMPM366FDFG, TMPM366FDXBG, TMPM366FWFG, TMPM366FWXBG, TMPM366FYFG, TMPM366FYXBG, TMPM367FDFG, TMPM367FDXBG, TMPM367FWFG, TMPM367FWXBG, TMPM367FYFG, TMPM367FYXBG, TMPM368FDFG, TMPM368FDXBG, TMPM368FWFG, TMPM368FWXBG, TMPM368FYFG, TMPM368FYXBG, TMPM369FDFG, TMPM369FDXBG, TMPM369FYFG, TMPM369FYXBG

Перечень подерживаемых устройств постоянно обновляется, поэтому актуальный перечень следует смотреть здесь http://www.coocox.org/Colinkex.htm

Содержимое комплекта

- CoLinkEx программатор
- JTAG кабель

Программное обеспечение

 - Актуальные прошивка, драйвера и плагины для программатора CoLinkEx
 - Плагин для работы с Keil-MDK
 - Среда разработки COIDE
 - Среда разработки Keil-MDK
