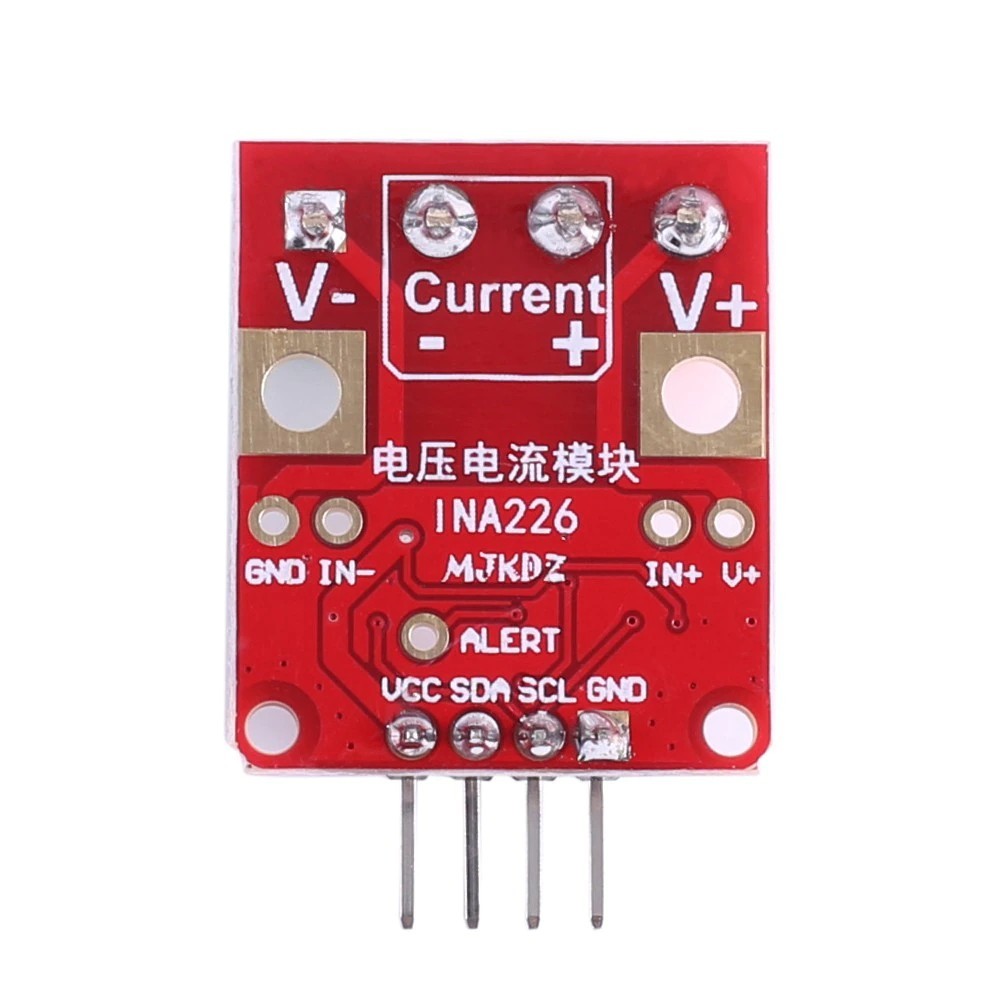

INA226 IIC I2C Interface Bi-directional Current/ Voltage Monitoring Sensor Module Zero-Drift Breakout Board for Arduino

Description:

- INA226 is a current shunt and power monitor with I2C or SMBUS compatible interface.
- The device simultaneously monitors the parallel voltage drop and the bus power supply voltage.
- The programmable calibration value, conversion time and average value are used in conjunction with the internal multiplier to directly read the current in amperes and the power in watts.
- The device has up to 16 programmable addresses on the I 2 C compatible interface.

Features:

1.IIC address can be set
2.Measuring voltage
3.Measuring current

Parameter:

1.Product name: INA226 Voltage Current Monitor
2.Work voltage: DC 2.7V~5.5V
3.Measured voltage:DC 0V~36V
4.Measured current:-20A~20A
5.Error accuracy:+/-1%
6.Resolution:16Bit
7.IIC address:Set by pads
8.PCB Size:26*22*14mm

Application:

1.Micro controller
2.Safety inspection
